Structure Features And Uses:
KMZ543X/H-10C/P bevel gear hidden plate one-way sealing knife gate valve has the advantages of straight up and down movement of valve plate to open and close the pipeline, small size, short length and so on. Suitable for paper mill, sewage plant, mine, water treatment equipment, colloidal medium, limited installation space. Preset limited system.
Important Performance
Nominal pressure: 1.0MPa
Applicable temperature: -20~120℃
Leakage rate: ordinary type≤ 1%
Air source pressure: 6.0-8.0 bar
Combustible gas power supply voltage: 220V或380VAC
Design/Testing Standards
Flange standard: GB9115-88
Structure length: GB12221
Pressure standard: GB/T13927-92

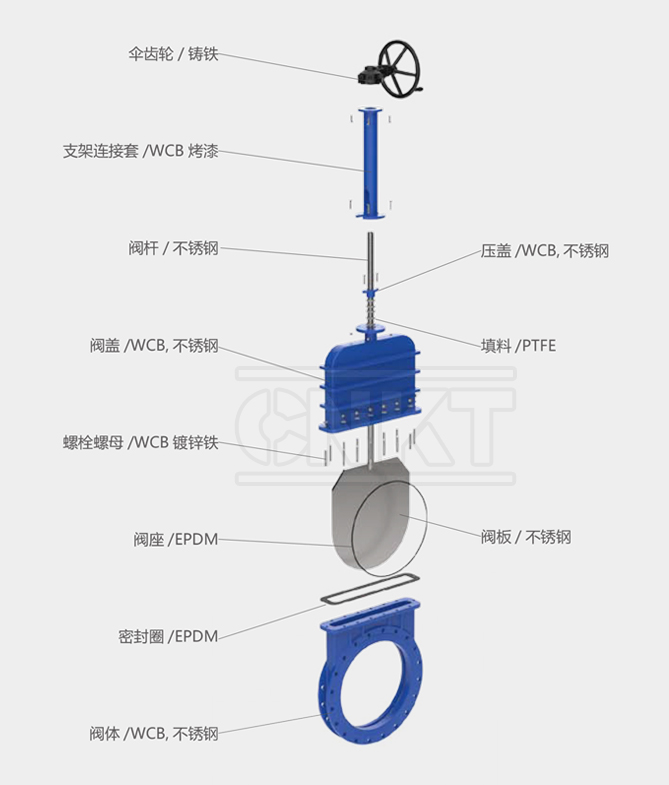

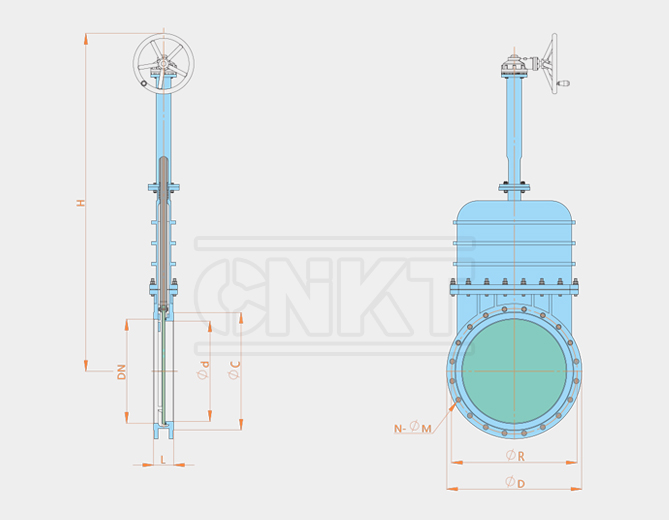

PN10 Connection Size
DN | Фd | L | D | R | C | M | A-ФB | H |
80 | 80 | 51 | 200 | 160 | 132 | M16 | 4-18 | 650 |
100 | 100 | 51 | 220 | 180 | 156 | M16 | 4-18 | 700 |
125 | 125 | 57 | 250 | 210 | 184 | M16 | 8-18 | 750 |
150 | 150 | 57 | 285 | 240 | 211 | M16 | 8-18 | 820 |
200 | 200 | 70 | 340 | 295 | 266 | M20 | 8-23 | 865 |
250 | 250 | 70 | 395 | 350 | 319 | M20 | 12-23 | 980 |
300 | 300 | 76 | 445 | 400 | 370 | M20 | 12-23 | 1100 |
350 | 350 | 76 | 505 | 460 | 429 | M20 | 12-23 | 1260 |
400 | 400 | 89 | 565 | 515 | 480 | M24 | 16-27 | 1450 |
450 | 450 | 89 | 615 | 565 | 530 | M24 | 20-27 | 1640 |
500 | 500 | 114 | 670 | 620 | 582 | M24 | 20-27 | 1763 |
600 | 600 | 114 | 780 | 725 | 682 | M27 | 20-30 | 1895 |
700 | 700 | 127 | 895 | 840 | 794 | M27 | 24-30 | 2010 |
800 | 800 | 127 | 1015 | 950 | 901 | M30 | 24-33 | 2185 |
900 | 900 | 127 | 1115 | 1050 | 1001 | M30 | 28-33 | 2340 |
1000 | 1000 | 149 | 1230 | 1160 | 1112 | M33 | 28-36 | 2540 |
1200 | 1200 | 156 | 1455 | 1380 | 1328 | M36 | 32-39 | 2800 |
