Electric butterfly valve is this type of regulating valve. Its stop valve is an annular disc or disc, and its key is composed of an oil circuit board, a valve stem, a disc and a sealing ring. The oil circuit board is cylindrical, radial and short in length, and has an embedded butterfly plate. The butterfly plate of the butterfly valve is fixed on the diameter of the pipe. In the cylindrical safety passage of the butterfly valve oil circuit board, the disc-shaped butterfly plate rotates around the center line with a rotation angle of 0° to 95°. When it rotates to 95°, the gate valve will rotate completely. It has been opened.

The electric butterfly valve is simple in structure, light in weight, very light, and consists of several parts. In addition, it is easy to use because it can be opened and closed quickly by just rotating 95°. At the same time, the gate valve has excellent fluid control characteristics. When the butterfly valve is in the fully open position, the frictional resistance when the material flows through the oil circuit plate is only the thickness of the butterfly plate, so the air pressure generated by the gate valve is not large and good. Flow monitoring feature. Butterfly valves have two types of seals: elastic seals and metal seals. For malleable sealed gate valves, the sealing ring can be installed in the oil circuit board or near the butterfly plate.

The electric butterfly valve metal seal butterfly valve is usually longer than the ductile seal butterfly valve, but it cannot guarantee a good seal. Although metal-sealed butterfly valves can be integrated into higher operating temperatures, malleable sealed butterfly valves have the disadvantage of limited temperature. When electric butterfly valves are designated for flow monitoring applications, it is very important to select the correct valve size and type. The basic principle of butterfly valve construction is particularly suitable for the manufacture of large diameter valves. Butterfly valves are not only used in general industrial production, such as crude oil, liquefied gas, chemical plants and sewage treatment, but also used in cooling systems of thermal power plants.

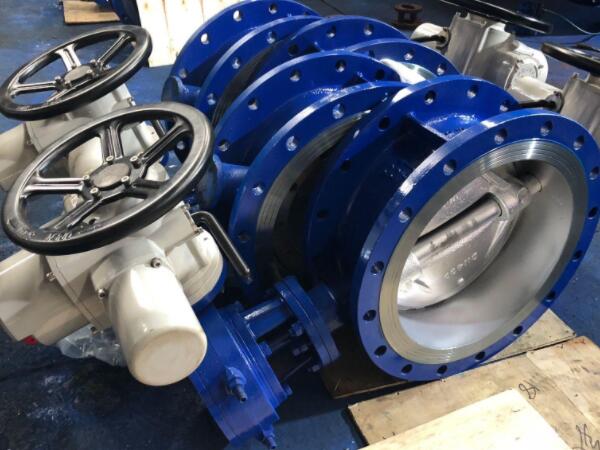

There are two types of common electric butterfly valves: wafer butterfly valves and flange butterfly valves. The wafer butterfly valve uses stud bolts to connect the gate valve between the two pipe flanges. The flanged butterfly valve includes a flange on the gate valve. Use anchor bolts to connect the two side ring flanges of the gate valve to the pipe flange.

However, you need to prepare the following points before installing the electric butterfly valve:

1. After opening, the valve must be installed on time. Do not loosen the valve fixing screws or nuts.

2. You can install electric butterfly valves. Connect it to the pipe at any angle. We recommend that you do not install it upside down for easy maintenance.

3. When installing the butterfly valve flange, it is necessary to ensure that the flange surface is aligned with the sealing rubber, and the screws are evenly tightened, and the sealing surface is a good fit. If the tightening force of the screws is uneven, the rubber will hit. Block the butterfly plate or make the valve stem leak to the butterfly plate.
